Why Teflon Tubes Excel in Automotive Cooling Environments
Chemical and Thermal Resistance to Modern Coolants (Including Organic Acid & Low-Conductivity Formulations)
PTFE or Teflon tubes stand up well against OAT and HOAT coolants, those fluids that tend to eat away at regular rubber materials over time. The reason? Their basic molecular makeup just doesn't react much with most chemicals. These tubes stay put even when exposed to glycol based coolants or ones with low conductivity, so additives don't get used up and particles don't form inside the system. Rubber hose alternatives start breaking down around 100 to 110 degrees Celsius, but PTFE can handle temperatures all the way from minus 200 to 260 degrees Celsius. That makes them ideal for today's engines where certain parts run really hot. Because they won't break down chemically or melt under heat stress, there's less chance of contaminating the coolant itself. Tests show these tubes last about 30 to 50 percent longer than standard options according to industry testing methods like SAE J2044.
Sustained Pressure Integrity at 120–150°C – Critical for Turbocharged and EV Thermal Management
When running continuously between 120 and 150 degrees Celsius, which is common in turbochargers and electric vehicle battery cooling systems, Teflon tubes maintain about 98 percent of their maximum burst pressure. Reinforced rubber hoses tell a different story though, losing as much as 60% of their strength at these temps. The fluoropolymer laminates handle pressure spikes right up to 150 psi without any kind of leak through the material itself. This matters a lot for high voltage battery cooling because even tiny amounts of fluid escaping can really mess with electrical insulation. Tests following ISO 6722 standards found absolutely no deformation after going through 5,000 heating and cooling cycles at 150°C. That's actually three times better than what most premium reinforced rubber can manage. Electric cars need temperature control within plus or minus 2 degrees Celsius for proper operation. These tubes stay dimensionally stable so they don't collapse or stretch out when exposed to prolonged heat, which keeps the coolant flowing properly without restrictions developing over time.

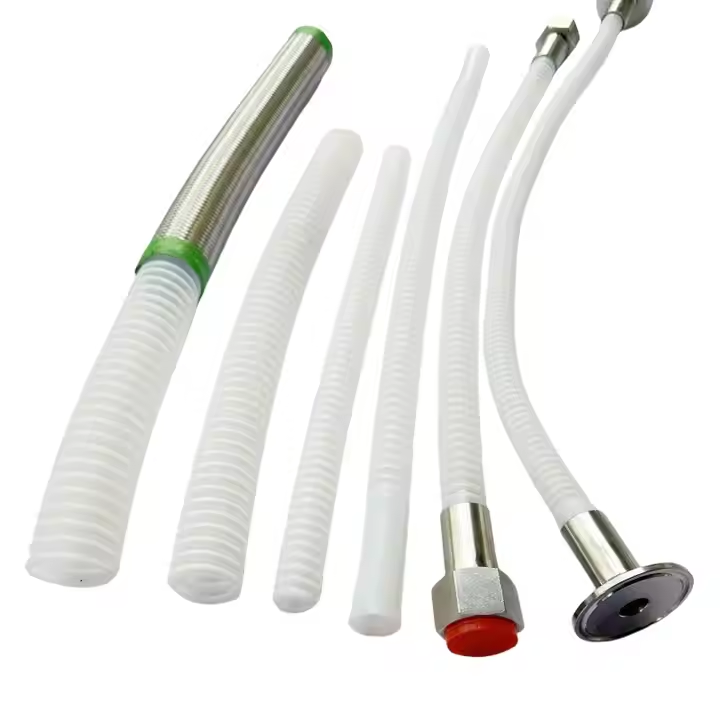

Customization Options for Teflon Tube Integration
Precision Dimensional Engineering: OD, ID, Wall Thickness, and Dynamic Bend Radius Control
Getting automotive cooling systems right requires very specific dimensions to prevent leaks when fitting them into small spaces where temperatures fluctuate constantly. Teflon tubing comes in various sizes, both inside and outside diameters, along with different wall thickness options ranging from really thin 0.2 mm walls that flex easily around tight corners to thicker 1.5 mm walls needed for those high pressure areas like turbo systems or chillers. What matters most is controlling how much the tube bends without kinking during installation or when it heats up and cools down repeatedly. Proper bending keeps coolant flowing smoothly even when engines reach their hottest points. Such careful dimensioning means no need for messy retrofits later on, plus it helps maintain stable pressure levels and good seals throughout all the expansions and contractions that happen as parts heat and cool over time.
Reinforcement Strategies: Braid-Over, Spiral-Wound Stainless Steel, and Hybrid Laminate Architectures
When dealing with automotive vibrations, sudden loads, and pressure surges, reinforced PTFE tubing becomes much stronger than standard versions for specific applications. The braid over stainless steel covering gives complete protection against crushing forces, which is really important when tubes run underneath vehicle chassis where they might get squashed. Spiral wound reinforcements allow movement along the length of the tube, making them suitable for parts that move around like pump connections. Some manufacturers have started using hybrid laminates that mix PTFE with special thermoset polymers between layers. This combination makes the tubing three times as strong before bursting compared to regular single layer designs. These reinforced structures stop the tubes from expanding unexpectedly during pressure spikes and cut down on wear and tear failures by about 80% compared to non-reinforced options. As a result, parts last longer in those tough thermal systems where stress is constant.
Meeting OEM and Industry Standards for Teflon Tube Deployment
Compliance with SAE J2044, ISO 6722, and OEM-Specific Fluid Conduit Requirements
In automotive cooling systems, Teflon tubes need to pass through multiple layers of certification beyond basic industry standards. Manufacturers have to meet not only general specs but also specific demands from original equipment makers regarding durability, cleanliness, and overall performance. Standards like SAE J2044 check if the tubes can handle burst pressures when temperatures reach their peak around 150 degrees Celsius. Meanwhile, ISO 6722 looks at whether they maintain stability over time when exposed to those modern OAT and HOAT coolants we see today. Big players in the industry often take things even further with their own tests. They might subject tubes to months of chemical soaking, run them through thousands upon thousands of bending motions to simulate real-world wear, and test how well they resist permeation from organic acid coolants. Original Equipment Manufacturers throw in extra challenges too. Some want absolutely no particles coming off inside electric vehicle battery chillers, others push for lighter weight materials without sacrificing strength for sports cars, and there are always concerns about electrical properties for systems handling high voltage. The difference between dual certified tubes meeting both SAE and ISO standards versus regular ones is pretty striking. Field data shows these certified products last about 40% longer before needing replacement, which makes sense given all the extra testing they undergo. When components survive such strict scrutiny, it naturally leads to better reliability on the road.
Proven Teflon Tube Applications in High-Stakes Automotive Systems
Tesla Model Y Battery Chiller Loop: FEP-Lined Teflon Tube Retrofit for Conductivity Stability and Leak Prevention
When they upgraded the battery cooling system in production Tesla Model Y vehicles, engineers swapped out the regular rubber hoses for special FEP lined Teflon tubes. This change addressed two big problems that had been causing headaches: coolant losing its electrical resistance over time and tiny leaks forming in the system. The new fluoropolymer material kept things electrically stable even when temperatures hit 120 degrees Celsius, which stopped those dangerous short circuits between cells. After running the modified system for around 15,000 hours straight, there were absolutely no leaks reported compared to the old setup where about 1.2% of units would fail. The molecular structure of these tubes also blocked all kinds of chemical seepage, including from those harsh organic acid coolants that can be really damaging. Plus, because these tubes are so flexible, technicians could route them through tight spaces under the car without worrying about breaking seals at connection points. Maintenance crews now have to check these systems much less frequently thanks to this upgrade, roughly three times longer between services. And tests show something pretty impressive too – the chance of thermal runaway events dropped by almost nine out of ten cases during stress tests.
Porsche 911 GT3 Radiator Bypass Line: 42% Weight Reduction and 3× Service Life vs. Traditional Rubber-Hose Assemblies
The new cooling system for the Porsche 911 GT3 uses spiral wound Teflon tubes reinforced with stainless steel instead of old fashioned rubber hoses. This change cut down on weight by around 40%, which makes a big difference when pushing hard through corners since there's less inertia to deal with, plus the car responds better overall. The special material can handle constant heat up to about 150 degrees Celsius without getting soft or deforming, something regular rubber just can't do in turbocharged setups where it usually starts failing well before reaching 20k miles. Testing under accelerated conditions showed these parts lasting way beyond 90k miles, roughly three times longer than what we see from rubber alternatives, all while standing up to pressure spikes of 250 pounds per square inch. Engineers managed to save even more weight by making sure the walls are exactly 0.5 millimeters thick (give or take a little) and doing away with those extra support brackets that used to be necessary. On actual race tracks, there haven't been any failures even when temps climb past 95 degrees Celsius. Fleet managers have also noticed significant savings over five years because they don't need replacements nearly as often anymore.
FAQ
What makes Teflon tubes superior for automotive cooling systems?
Teflon tubes are highly resistant to chemical reactions, temperatures, and pressure, making them ideal for modern automotive cooling systems compared to traditional rubber hoses.
How do Teflon tubes handle extreme temperatures?
Teflon tubes can comfortably withstand temperatures ranging from -200 to 260 degrees Celsius, unlike rubber hoses which start breaking down at around 100-110 degrees Celsius.
Are Teflon tubes customizable for different automotive needs?
Yes, Teflon tubing comes in various sizes and wall thickness, with precision engineering options to ensure proper integration without leakage or structural failure in automotive systems.
Do Teflon tubes meet industry standards?
Yes, Teflon tubes comply with several standards like SAE J2044 and ISO 6722, ensuring they can withstand various pressures, temperatures, and chemical exposures required by OEMs.
